Description:

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.

Features:

SOLID, FORGED ROTOR:

A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.

HIGH-TEMPERATURE, LONG-LIFE GREASE:

All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.

ADJUSTABLE AIR GAP:

When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

• General
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 22" x 10.5"-12" (52"), 24" x 12"-12" (61")
• Caster Tires: 13" x 6.5"-6"
• Seat and Suspension
• Seat: Torsion-spring suspension seat
• Drive System
• Drive System Type: Hydro-Gear ZT3100 Transaxle (52"), Hydro-Gear ZT3400 Transaxle (61")
• Pumps: ZT3100 Internal Pump (10 cc), ZT3400 Internal Pump (12 cc)
• Motors: Internal Motor (16 cc)
• Performance
• Forward Ground Speed: 8.5 mph (52"), 10 mph (61")
• Reverse Ground Speed: 5 mph
• Braking
• Parking Brake: Foot-operated pedal
• Deck
• Cutting Widths: 52", 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5"-5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction
• Deck Construction: Dual-plate cutter deck with 2 steel plates, reinforcement plate at spindles
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement
• Blade Engagement: Ogura GT2 (108 ft lb)
• Adjustable air-gap for extended life

Width	Weight	Height	Length
73 Inch	911 Pounds	0 Inch	0 Inch

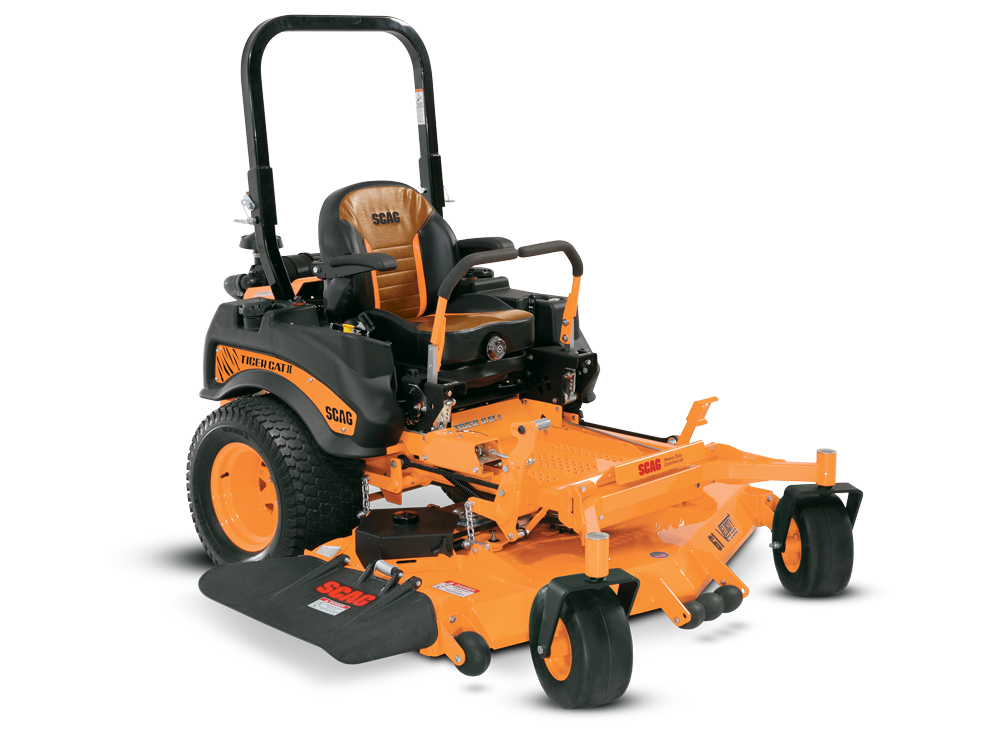

Description:

The Scag Tiger Cat II is a zero-turn mower designed for professional landscapers who demand a machine that's both powerful and maneuverable. It combines the strength of a tiger with the nimbleness of a cat, allowing you to tackle tough jobs in tight spaces with unmatched efficiency.

Built for Endurance:

• Tri-Plate Deck Tops: The nearly half-inch thick steel deck construction (almost half an inch!) ensures exceptional durability, built to withstand heavy-duty use.
• Superior Cut Quality: The Velocity Plus™ deck with a special front baffle chamber and anti-scalp rollers delivers a clean, professional cut while preventing damage to your turf.
• Easy Maintenance: Features like replaceable wear pads and easy access points simplify keeping your mower in top condition.

Power and Control at Your Fingertips:

• Engine Options: Choose from a variety of engine options to match your power needs.
• Hydro-Gear Dual Pump and Motor Drive System: Delivers smooth operation and precise control for effortless maneuvering.
• Foot-operated Parking Brake: Provides convenient control when stopping or dismounting the mower.

Additional Highlights:

• Zero-Turn Design: Enables sharp turns around obstacles, maximizing your productivity.
• Adjustable Cutting Height: Allows you to customize the cut for different grass types and conditions. (1" to 5" in 0.25-inch increments)
• Comfortable Operator Platform: The mid-back seat mounted on an operator-suspension platform reduces fatigue during long working hours.
• The Scag Tiger Cat II is ideal for professional landscapers who need a powerful and agile zero-turn mower to handle demanding workloads. Its combination of durability, cutting performance, maneuverability, and operator comfort makes it a top choice for getting the job done efficiently.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

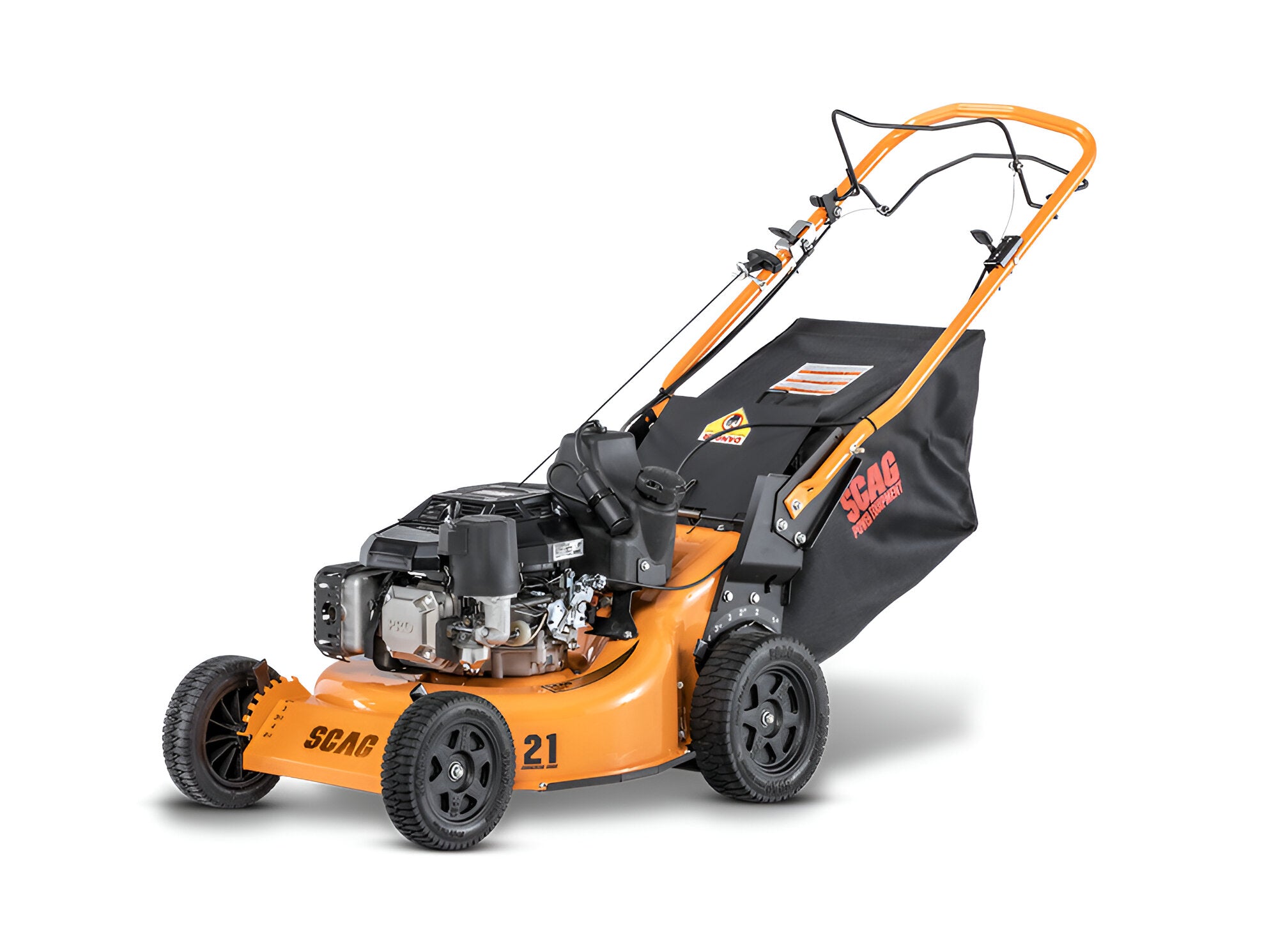

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact solution you've been searching for, offering impressive productivity and versatility within its 21" wide platform. Whether you're on the job or tending to your own lawn, the SFC-21 ensures professional-quality results with each pass, leaving behind a beautifully manicured lawn.

Equipped with 3-in-1 versatility, including mulching, bagging, and optional side discharge capabilities, this mower empowers you to handle various challenges with ease while achieving exceptional results.

Features:

Fine-Tuned and Simple:

• Easy height-of-cut adjustment: Allows for cutting heights ranging from 1.5" to 4.5" in 0.5" increments, providing flexibility to adapt to different grass lengths and preferences.

Width	Weight	Height	Length
23.25 Inch	0 Gram	0 Inch	0 Inch

Description:

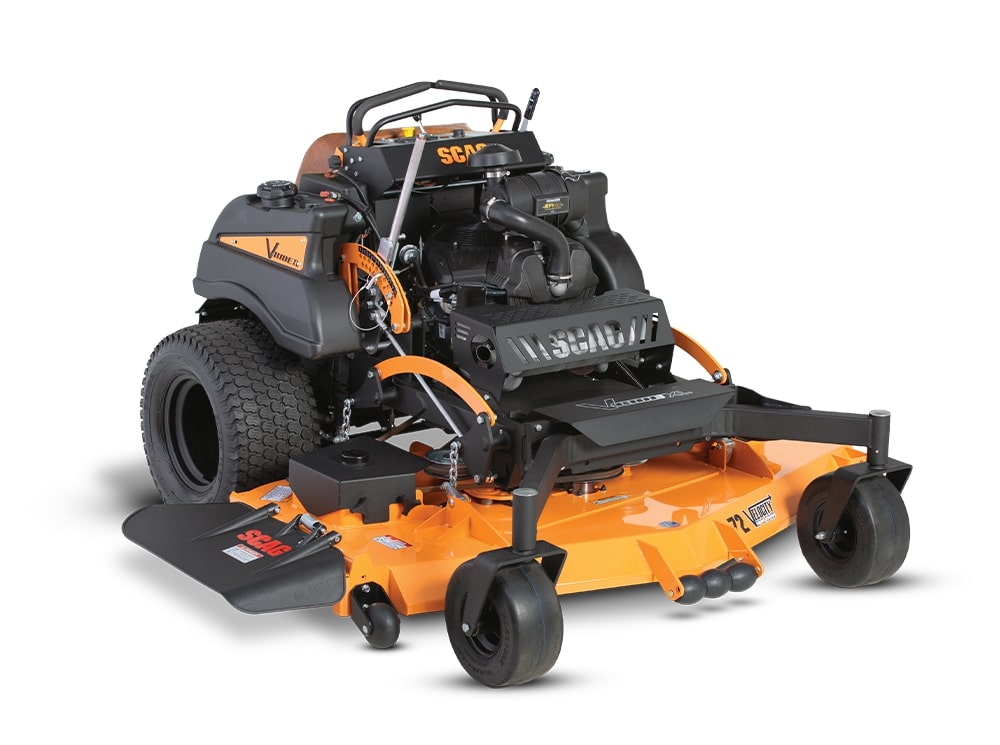

The V-Ride XL proves that it’s possible to be tough as nails and soft as a cloud. Its solid frame and expansive operator platform with an adjustable suspension to reduce vibration ensure you’re always riding in comfort no matter how big the job. Upgraded pumps and wheel motors are extra rugged and reliable, giving you confidence you’re always ready to tackle whatever comes your way.

Specifications:

Dimensions

• Length: 70.5″
• Tracking Width: 51.5″
• Width (Chute Down): 65.25″
• Width (Chute Up/Transport): 53.75″
• Height: 47.75″
• Weight: 1,150–1,179 lb

Fuel System

• Fuel Type: Gas
• Fuel Capacity: 12 gallons

Tires

• Drive Tires: 24″ x 9.5″ - 12″
• Caster Tires: 13″ x 6.5″ - 6″

Drive System

• Type: Dual pump & motor
• Pumps: Hydro-Gear 16 cc
• Motors: Hydro-Gear 18 ci
• Forward Speed: Up to 11.6 mph
• Reverse Speed: Up to 5 mph
• Parking Brake: Hand lever

Deck

• Type: Velocity Plus™ cutter deck
• Cutting Width: 52″
• Cutting Height Range: 2″ to 6″ (¼″ increments)
• Lift Type: Hand lever
• Construction: Tri-plate deck (3 layers of steel totaling ~½″ thick), reinforced at spindle areas
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura 3.5 clutch (250 ft-lb torque) with adjustable air-gap

Width	Weight	Height	Length
0 Inch	1179 Pounds	0 Inch	0 Inch

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Specifications:

Engine:

The new Kawasaki® FT Series engines with patented Vortical air filtration blaze new trails.

Kawasaki® FT Series engines are designed and built to handle heavy loads. The Vortical air filtration system muscles out grass and debris while large, easy-to-access integrated clean-out ports amp up your efficiency and keep you cutting.

Other features include:

• 90° V-twin
• High-efficiency, centrifugal air intake system
• Dual-element air filtration with reinforced filter
• Large, easy-to-access integrated clean-out ports
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Internally vented carburetor with fuel shut-off solenoid
• Cast-iron cylinder liners

Specs:

• Model: STCII-52V-26FT-EFI
• Deck Width: 52″
• Deck Type: Velocity Plus™ Cutter Deck
• Engine Output: 26 HP
• Engine Brand: Kawasaki®
• Engine Series: FT Series with electronic fuel injection (EFI)

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

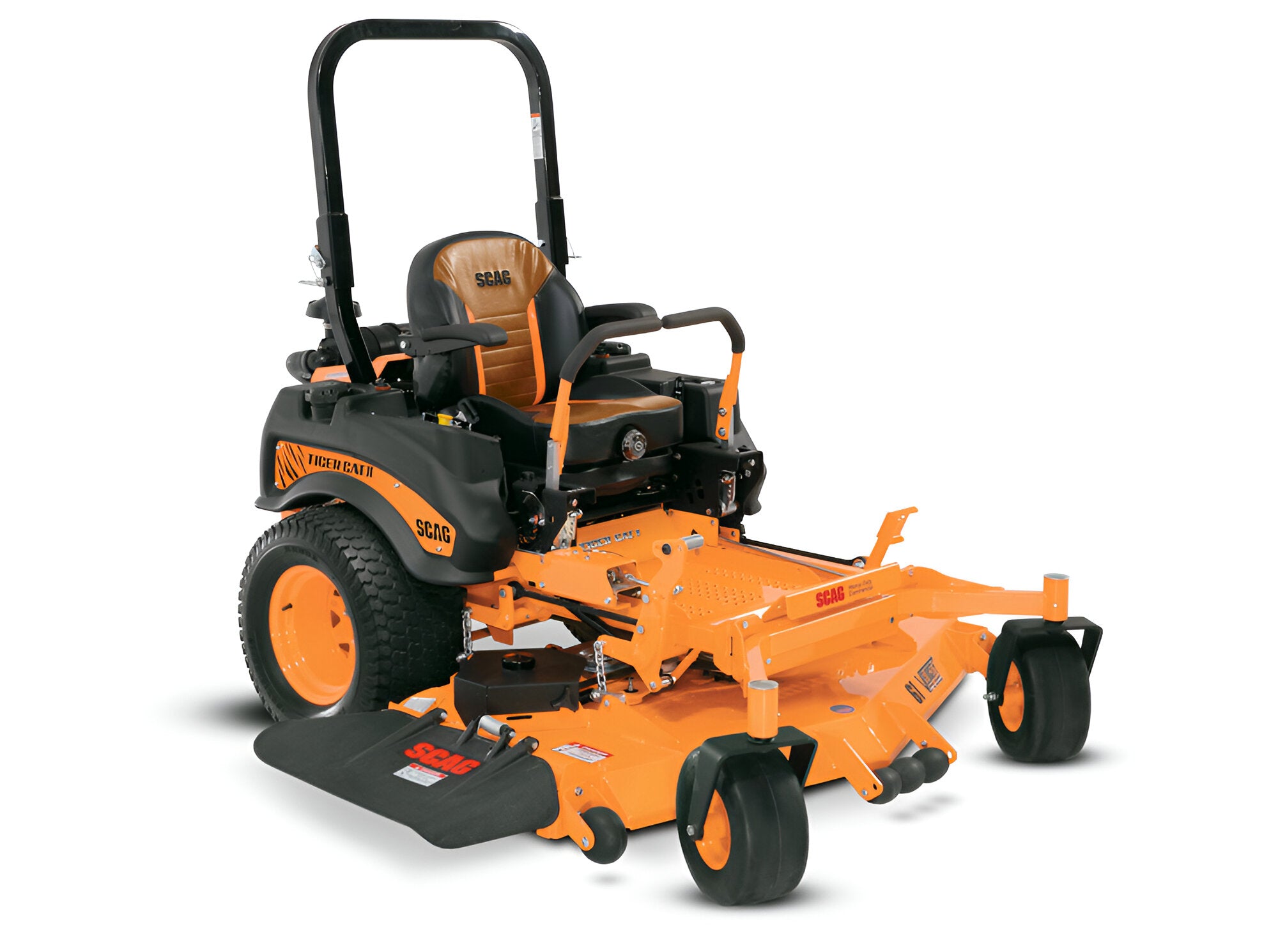

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Engine

The Briggs & Stratton® Vanguard® BIG BLOCK™ engine found on select Scag® mower models is a proven performer with power and reliability. Features include:

• V-Twin OHV technology.
• Dura-Bore cast-iron cylinder sleeve.
• Full-pressure lubrication with spin-on oil filter.
• Oil cooler.
• Advanced debris management.
• Centrally located oil pump and pickup.
• Heavy-duty cylinder and sump.
• High-efficiency head design.
• Dynamically balanced crankshaft.
• Industrial-grade solenoid shift starter.

Specification:

Product Dimensions (61″ Tiger Cat):

• Length: 80″
• Width (chute down): 73.5″
• Width (chute in transport position): 62.75″
• Height (ROPS folded): 46.75″
• Height (ROPS up): 67.25″
• Weight: 1,257–1,277 lb

General:

• Total Fuel Capacity: 9.5 gallons
• Drive Tires: 24″ x 12″-12″
• Caster Tires: 13″ x 6.5″-6″, flat-free

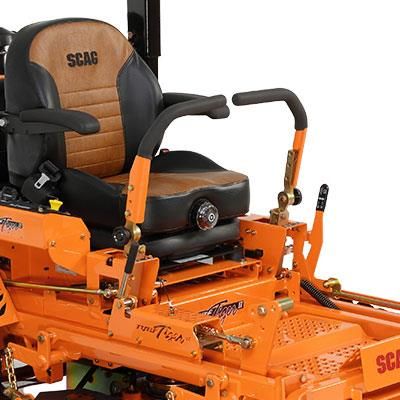

• Seat: 4-point iso-mounted mid-back seat on operator-suspension platform

Drive System:

• Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck:

• Cutting Width: 61″
• Type: Velocity Plus™
• Cutting Height: 1″ to 5″ (adjustable in 0.25″ increments)
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck made of 3 steel plates totaling nearly 1/2″ thick, with reinforcement plates at cutter deck spindles
• Spindles: Cast-iron housing with tapered roller bearings.

Width	Weight	Height	Length
			0 Inch

The envy of the neighborhood - 52", 61" or 72" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag's ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Heavy-Duty, Double-Tube Steel Main Frame - Solid Design for Years of Dependable Service: The Turf Tiger™ is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment. Powerful and Efficient Engine Options - Huge Power, Up To 40 HP: Choose from a Kawasaki®, or Briggs Vanguard™ engine; air-cooled or liquid-cooled; electronic fuel injection (EFI) or digital fuel injection (DFI) options. Diesel (Kubota) and propane (Kohler) options are also available.

Width	Weight	Height	Length
0 Inch	1600 Pounds	0 Inch	0 Inch

Description:

It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.61" Velocity Plus' Cutter Deck, 40 HP Briggs Vanguard' BIG BLOCK' EFI – electronic fuel injection Features may include: Velocity Plus Cutter Decks 52", 61" OR 72" CUTTING WIDTH The envy of the industry, Velocity Plus' decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Driveshaft-Driven Cutter Decks ANOTHER REASON THE TURF TIGER IS KING OF THE JUNGLE. A driveshaft connects the engine to the deck, eliminating the long belt drive and increasing cutting-height range. Heavy-Duty, Double-Tube Steel Main Frame SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE The Turf Tiger' is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.

Width	Weight	Height	Length
0 Inch	0 Pound	0 Inch	0 Inch

THE APEX PREDATOR It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability. Features may include: 48", 52" OR 61" CUTTING WIDTH The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Width	Weight	Height	Length
0 Inch	1180 Pounds	0 Inch	0 Inch

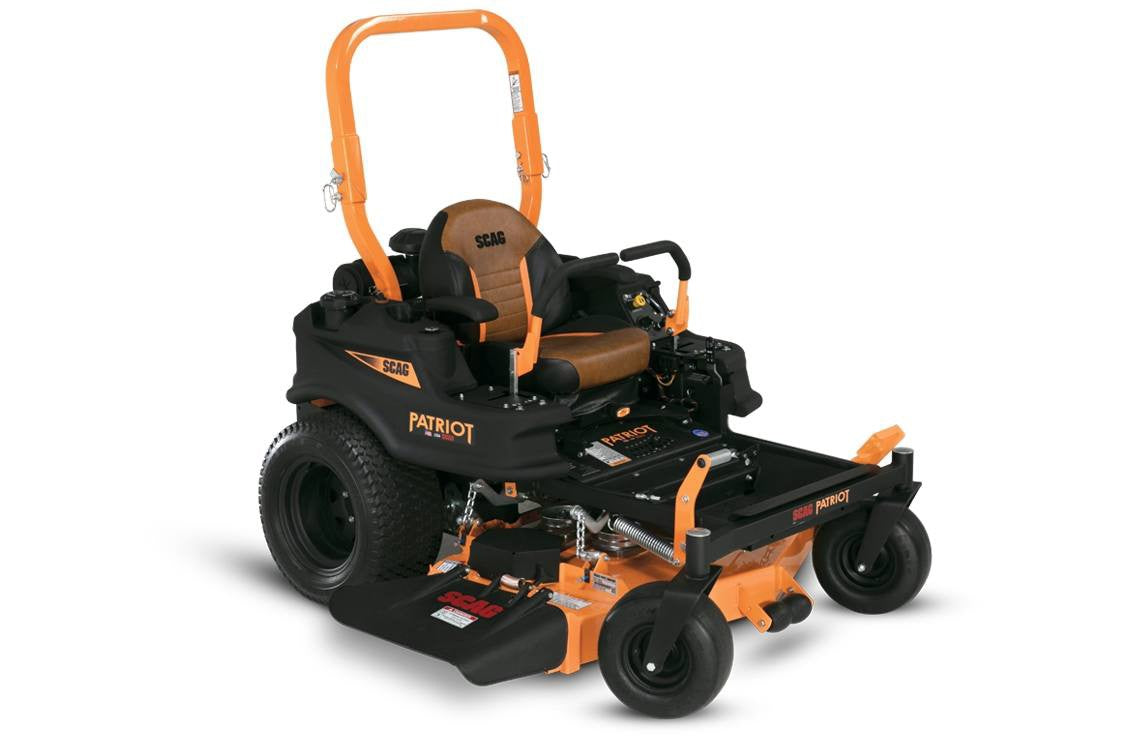

DESCRIPTION

52" Hero Cutter Deck, 27 HP Scag® SR Series - V-Twin

FEATURES

• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
• Foot-Pedal Parking Brake - Stay in Control: Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
• Iso-Mounted Footplate - Crank Up the Comfort: Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• Hydro-Gear ZT-3100 / ZT-3400 Transaxles - Speeds Up To 10 MPH (SPZ61) / 8.5 MPH (SPZ52): The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Suspension Seat - Ride in Comfort: The torsion-spring suspension seat adjusts to each operator's weight, is contoured and features armrests, all to provide superior comfort.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 26 HP: Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Scag® SR Series - V-Twin
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 22" x 10.5"-12" (52"); 24" x 12"-12" (61")
• Caster Tires: 13" x 6.5"-6"
• Seat: Torsion-spring suspension seat
• Drive System Type: Hydro-Gear ZT3100 Transaxle (52"); Hydro-Gear ZT3400 Transaxle (61")
• Pumps: ZT3100 Internal Pump: 10 cc (52"); ZT3400 Internal Pump: 12 cc (61")
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8.5 mph (52"); 10 mph (61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal
• Cutting Widths: 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT2 (108 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height (ROPS folded): 46.5"
• Height (ROPS up): 61"
• Weight: 907-911 lb

ACCESSORIES

• 2-Bag Spindle Driven Grass Catcher
• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Flat-Free Caster Tire
• Blade Buddy

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

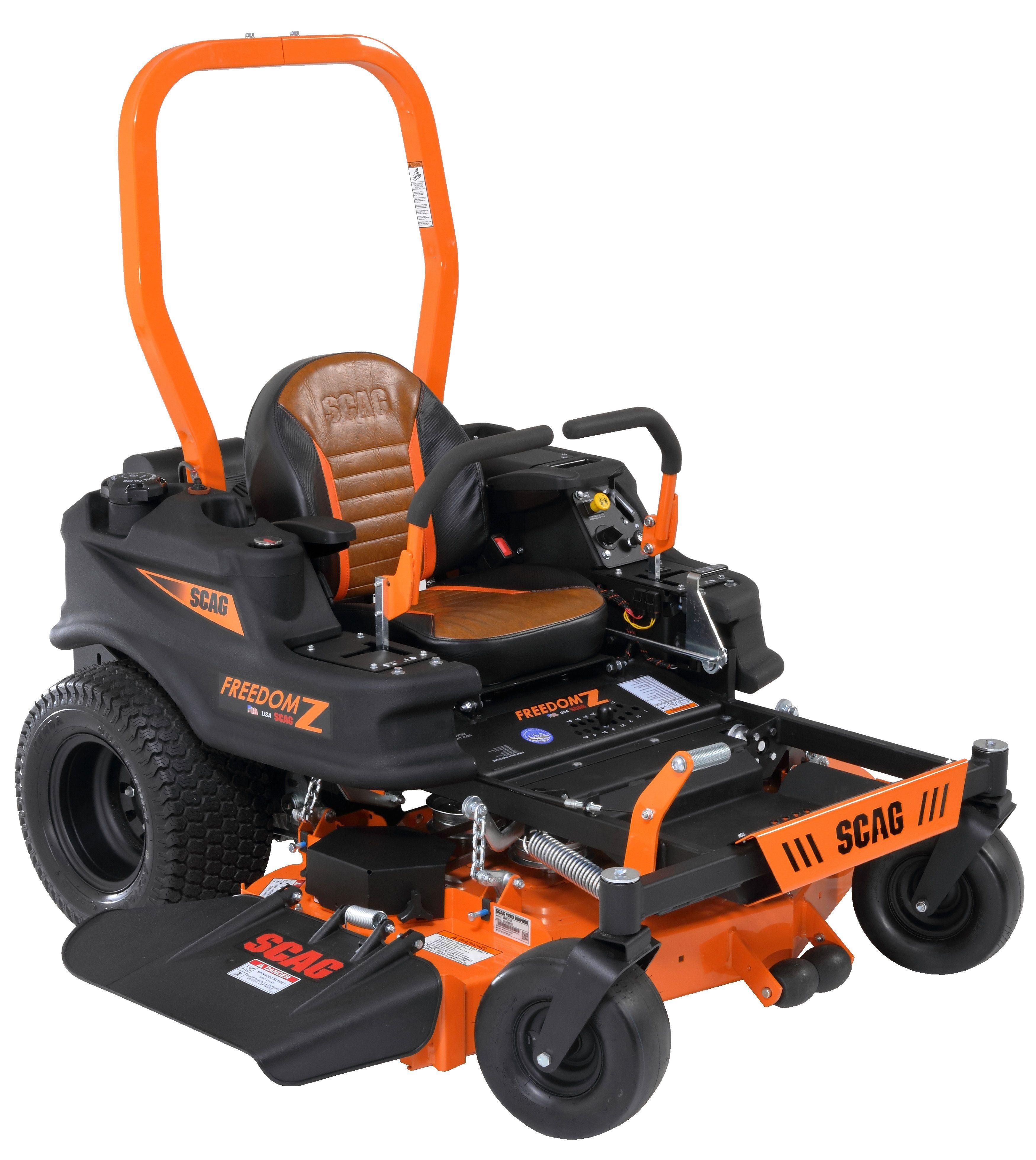

Description:

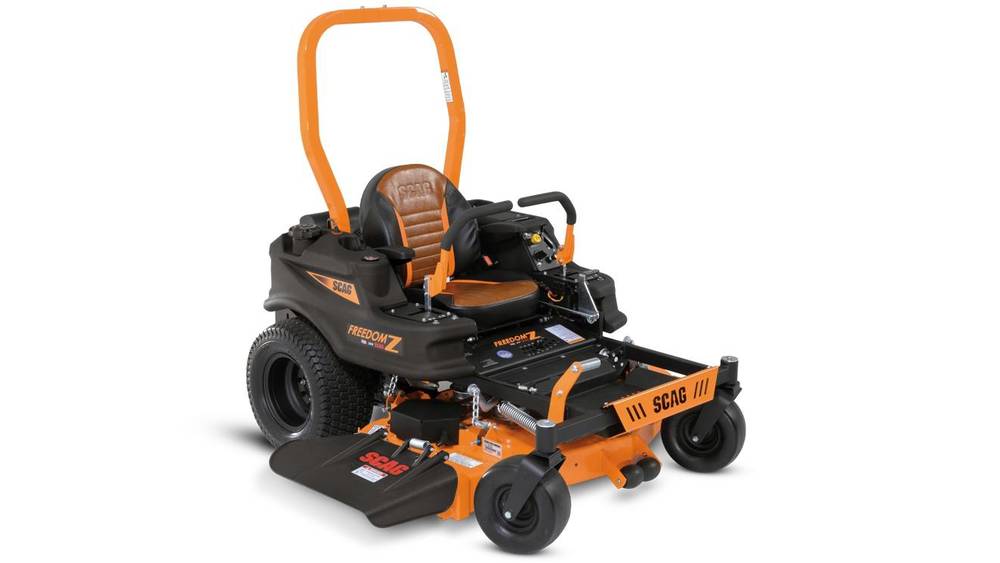

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Specifications:

GENERAL

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20″ x 10″-10″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

DRIVE SYSTEM

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump - 10 cc
• Motors: Internal Motor - 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

DECK

• Cutting Widths: Available in 48″ and 52″
• Type: Hero Cutter Deck
• Cutting Height: Adjustable from 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.

Product Dimensions

• 48″ Freedom Z
• Length: 73″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 60″
• Weight: 745 lbs
• 52″ Freedom Z
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lbs

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

DESCRIPTION

Elevate your mowing experience with the 42" Hero Cutter Deck, driven by a robust 21 HP Kawasaki® FR651V V-twin engine. Crafted for exceptional performance and durability, this mower boasts a heavy-duty construction and an array of innovative features.

Features:

• Proven Transaxles: The ZT drive systems' dual hydro transaxles ensure smooth power delivery to the drive wheels, offering reliable performance and speeds of up to 7 MPH. For added reliability, the 48" model comes equipped with Tuff Torq transaxles.
• Deep, Fabricated, and Welded Cutter Decks: Designed for heavy-duty use, the Hero Cutter Deck guarantees an outstanding quality-of-cut, effortlessly handling large grass volumes at higher speeds.
• Ogura PTO Clutch Brake: Delivers excellent starting and stopping power for the cutter deck, featuring an adjustable air gap for prolonged lifespan.
• Easy Foot-Pedal Deck Lift: The spring-assisted foot-pedal cutter-deck lift mechanism facilitates smooth and effortless raising and lowering of the cutter deck.
• Contoured, Bolstered, High-Back Seat: Enjoy ultimate comfort during extended mowing sessions with the ultra-comfortable and adjustable seat, complete with armrests for added support.
• Low-Maintenance Mower Design: With fewer grease points, this mower offers enhanced operator convenience and ease-of-ownership, minimizing downtime.
• High-Strength Steel Frame: Built to last, the tubular-steel main frame ensures unmatched strength and longevity, guaranteeing years of dependable service.
• Powerful and Efficient Engine Options: Choose between the reliable Kawasaki® FR or Kohler® 7000 Series engines, providing up to 24 HP of dependable power.

Specifications:

• Total Fuel Capacity: 3.5 gallons (36" and 42"); 5.5 gallons (48", 52" and 61")
• Drive Tires: Various sizes depending on the model
• Caster Tires: Various sizes depending on the model
• Seat: Padded with armrests, adjustable forward and back (tools required); armrests not available on 36" and 42" models
• Drive System Type: Hydro-Gear ZT2800 Transaxle (36", 42" and 52"); Tuff Torq TZ450 Transaxle (48"); Hydro-Gear ZT3100 Transaxle (61")
• Pumps: Internal Pump: 10 cc; Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph; Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 42", 48", 52" and 61"
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) - (36", 42", 48" and 52"); Ogura GT2 (108 ft lb) - (61"); Adjustable air-gap for extended life

Dimensions

• Length: 68.5"
• Width (chute down): 54.5"
• Width (chute in transport position): 43"
• Height: 41"
• Weight: 595 lb

Accessories:

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
• Cutter Deck Transport Latch

Width	Weight	Height	Length
60.5 Inch	612 Pounds	41 Inch	0 Inch

DESCRIPTION

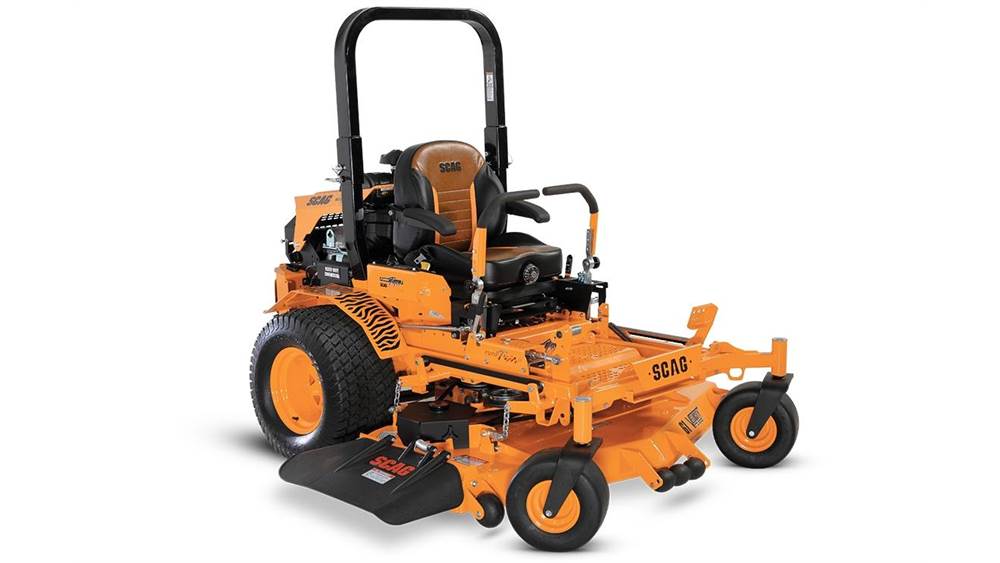

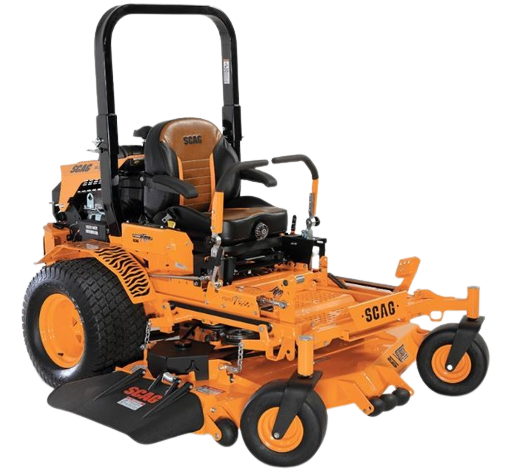

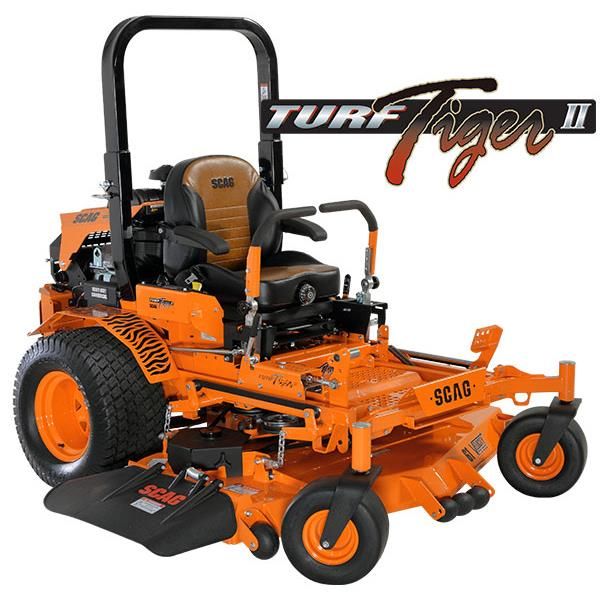

52" Hero Cutter Deck, 27 HP Briggs CXi Series™ - V-Twin

FEATURES

• Command perfection - DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
• Foot-Pedal Parking Brake - Stay in Control: Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
• Iso-Mounted Footplate - Crank Up the Comfort: Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• Hydro-Gear ZT-3100 / ZT-3400 Transaxles - Speeds Up To 10 MPH (SPZ61) / 8.5 MPH (SPZ52): The ZT drive systems' dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Suspension Seat - Ride in Comfort: The torsion-spring suspension seat adjusts to each operator's weight, is contoured and features armrests, all to provide superior comfort.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 26 HP: Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Briggs CXi Series™ - V-Twin
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 22" x 10.5"-12" (52"); 24" x 12"-12" (61")
• Caster Tires: 13" x 6.5"-6"
• Seat: Torsion-spring suspension seat
• Drive System Type: Hydro-Gear ZT3100 Transaxle (52"); Hydro-Gear ZT3400 Transaxle (61")
• Pumps: ZT3100 Internal Pump: 10 cc (52"); ZT3400 Internal Pump: 12 cc (61")
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8.5 mph (52"); 10 mph (61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal
• Cutting Widths: 52" and 61"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT2 (108 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height (ROPS folded): 46.5"
• Height (ROPS up): 61"
• Weight: 907-911 lb

ACCESSORIES

• 2-Bag Spindle Driven Grass Catcher
• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Flat-Free Caster Tire
• Blade Buddy

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

DESCRIPTION

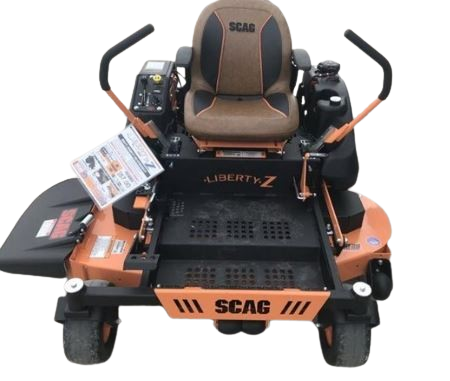

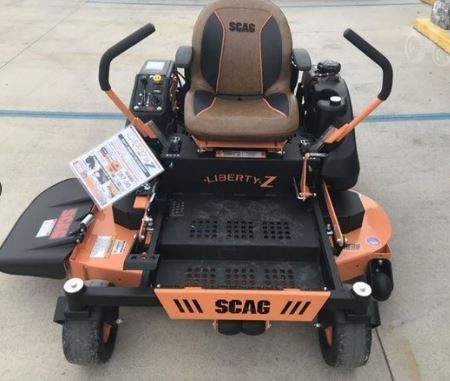

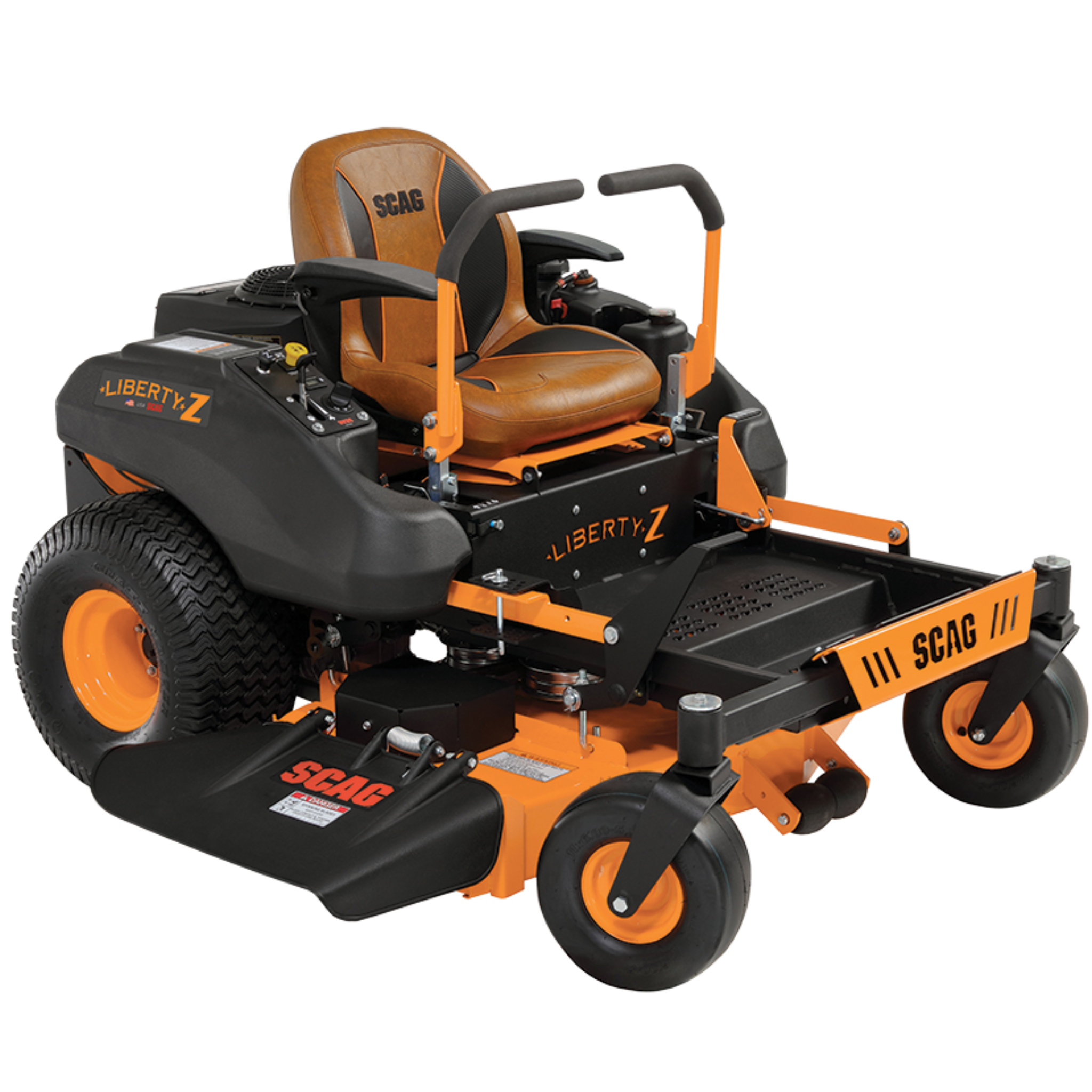

52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement

FEATURES

• Command perfection - Deep, Fabricated, and Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Hydro-Gear ZT-2800 Transaxles - Speeds Up To 8 MPH: The ZT drive system's dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: The 22 hp and 24 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever
• Cutting Widths: 48" and 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height: 60"
• Weight: 765 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy

Width	Weight	Height	Length
53 Inch	765 Pounds	60 Inch	0 Inch
